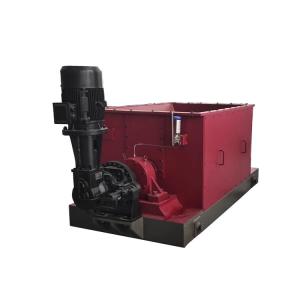

ISO9001 220v 4.2m2 Rendering Plant Crusher

Model Is SR-YPS-1 Shipping Type By Sea Rendering Plant Crusher

Working principle

1. This series of roller crushers are mainly composed of rollers, roller supporting bearings, pressing and adjusting devices, and driving devices.

2. Adjustment of the discharging granularity: a wedge or gasket adjustment device is installed between the two rollers, and the top of the wedge device is equipped with an adjustment bolt. When the adjustment bolt pulls the wedge up, the wedge pushes away the movable roller. The fixed wheel, that is, the gap between the two rollers becomes larger, and the discharging granularity becomes larger. When the wedge is downward, the movable roller is under the action of the compression spring and the gap between the two wheels becomes smaller, and the discharging granularity becomes smaller. The gasket device is by adding or subtracting gaskets The quantity or thickness is used to adjust the size of the discharging granularity. When the spacer is increased, the gap between the two rollers becomes larger, and when the spacer is reduced, the gap between the two rollers becomes smaller and the discharging granularity becomes smaller.

3. The driving mechanism is driven by two motors through a V-belt to drive the rollers on the sheaves, and rotate in relative directions. When crushing materials, the materials pass through the rollers from the feed port, and are crushed by rolling, and the crushed products are discharged from under the chassis.

4. For safety, the transmission part should install the safety cover by itself according to the actual situation.

4.2m2 Rendering Plant Crusher

4.2m2 animal bone crushing plant

220v animal bone crushing plant

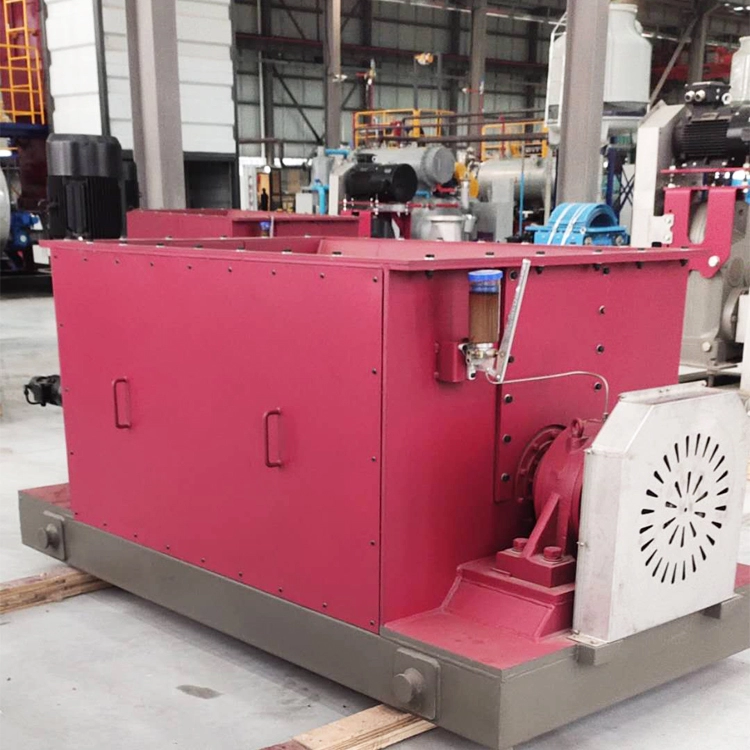

ISO9001 220v 4.2m2 Rendering Plant Crusher Images
